Nome da marca: NONE
Origem: CN (Origem)
Type: Bearing heater
Accuracy Class: High Accuracy
Accuracy: ±1%
brand name: SKF
place of origin: Sweden
customized support: Software Reengineering
power: 600 W, Electronic
Protection Class: IP65
Voltage: 230V
warranty: 1 years
Bearing weight: up to 5 kg (11 lb)
Min. bearing bore diameter: 20 mm (0.8 in.)
Max. bearing bore diameter: 100 mm (4 in.)
Maximum Power: 350W
Time Control: 5 seconds - 60 minutes
Demagnetization: The heater does not magnetize
Total Weight: 3 kg (6.6 lb)
Product Description

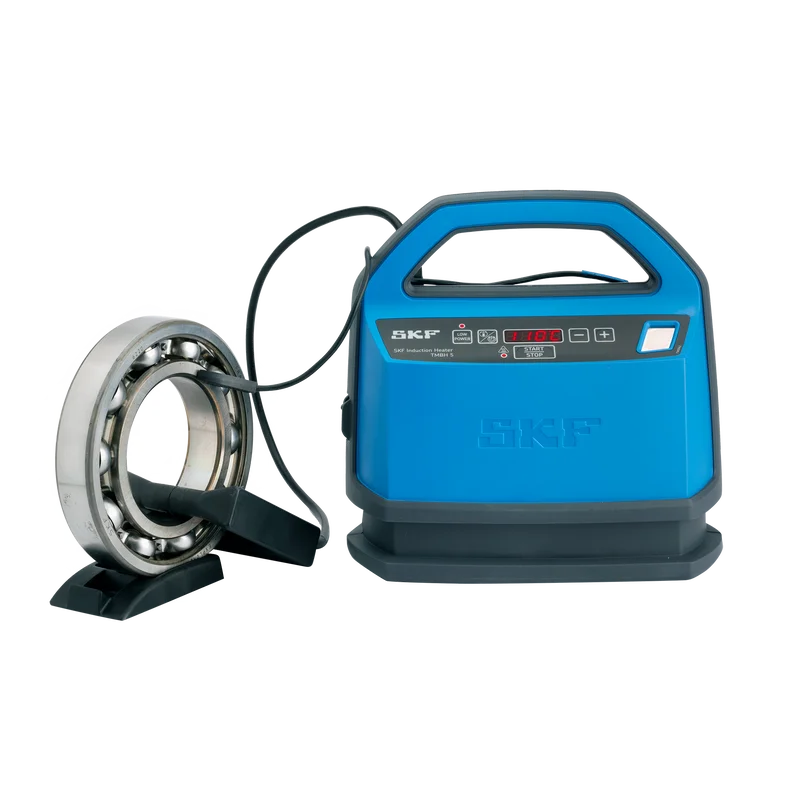

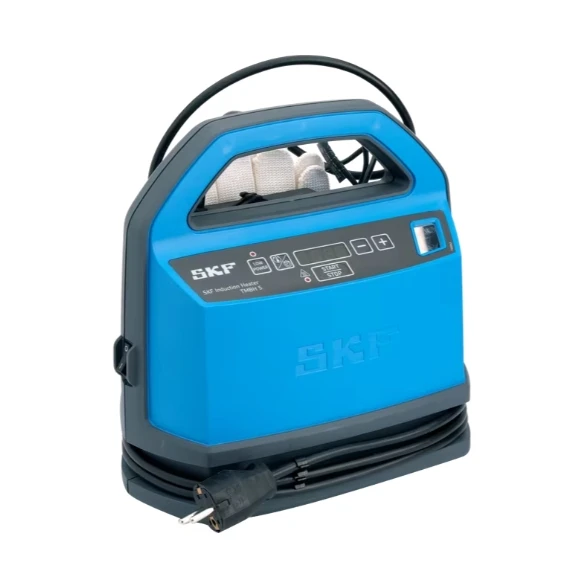

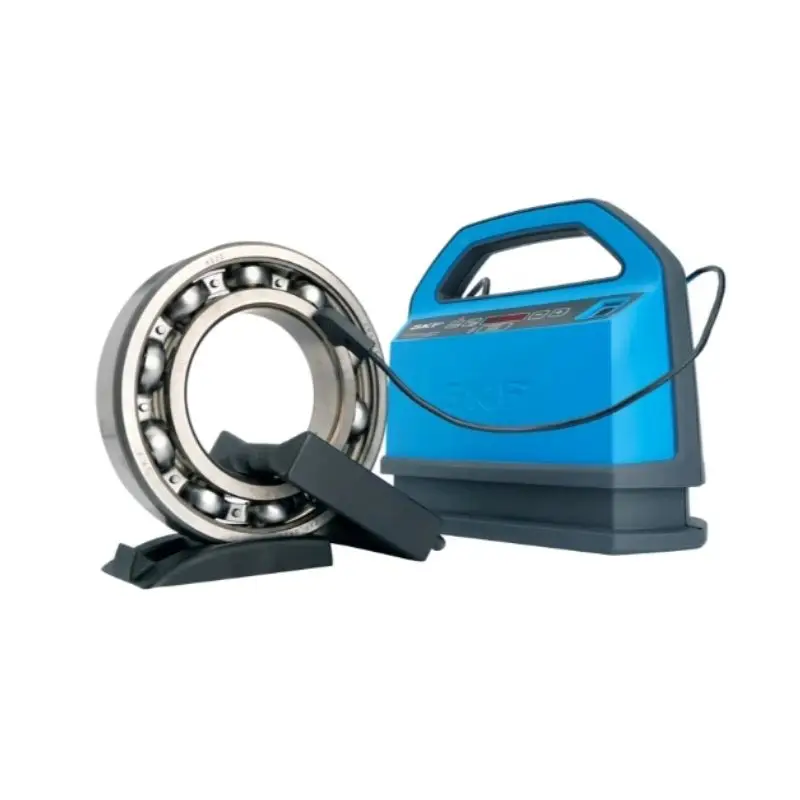

The TMBH 5 portable induction heater is used to heat and mount roller bearings onto a shaft with an interference fit. It is
versatile enough to be used in a range of situations – including at a work bench, on the factory floor or out in the field.
Typical applications include maintenance and service jobs on assets such as gearboxes, pumps, fans and blowers.

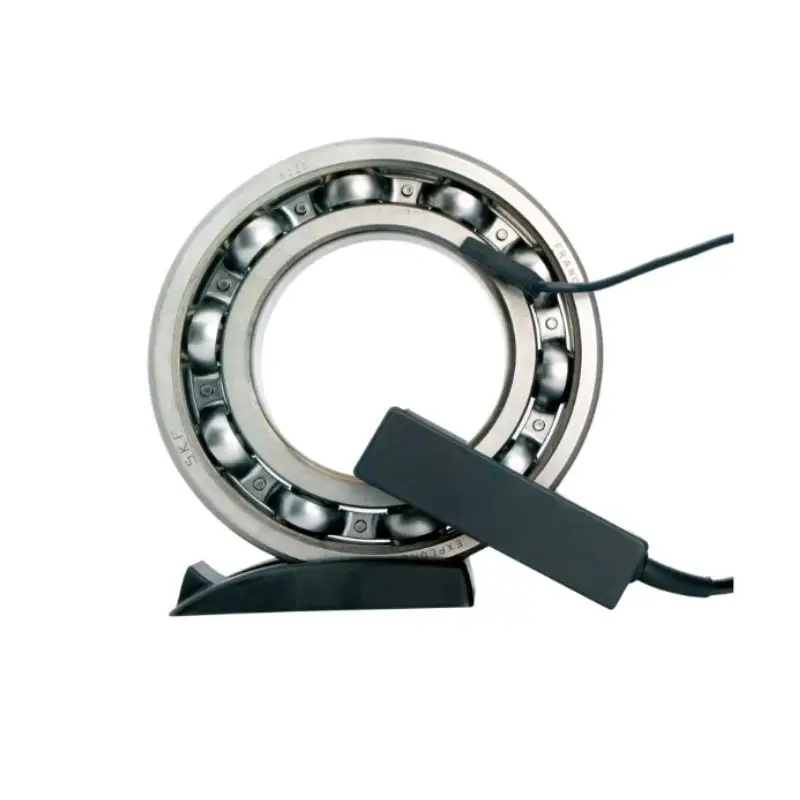

The device features near-silent performance and weighs only 3 kg, thanks mainly to the use of sophisticated medium-frequency technology. It features an induction clamp containing internal coils. Current in the coils generates a fluctuating magnetic field. This induces currents in the component, producing heat. Because this heat is generated within the component, not the clamp, the process is very efficient.TMBH 5 Benefits and features:
* Silent in operation
* Portable, compact and lightweight (3 kg)
* Uses advanced medium-frequency technology
* Choice of power settings * Accessories fit into convenient side compartments
* No need to choose separate yoke for each component
* Intuitive control panel
* Handles bearings up to 5 kg in weight
Specification
Designation |
| TMBH 5/230V
TMBH 5/120V |
Application 1) |
|
|
| Bearing weight 2) | up to 5 kg (11 lb) |
| Min. bearing bore diameter | 20 mm (0.8 in.) |
| Max. bearing bore diameter | 100 mm (4 in.) |
| Operating space heating clamp | 50 x 50 mm (2 x 2 in.) |
Max. bearing width |
| 50 mm (2 in.) |
Maximum Power |
| TMBH 5/230V: 350W
TMBH 5/120V: 350W |
Voltage and frequency |
| TMBH 5/230V: 230 V ±10%, 50/60Hz
TMBH 5/120V: 120 V ±10%, 50/60Hz |
Max. current consumption |
| TMBH 5/230V: 2A
TMBH 5/120V: 4A |
Temperature Control |
| 40 to 200 °C (104 to 392 °F) |
Time Control |
| 5 seconds – 60 minutes |
Demagnetization |
| The heater does not magnetize |
Dimensions (l x w x h) |
| 275 x 180 x 270 mm (10.8 x 7.09 x 10.6 in.) |
Total Weight |
| 3 kg (6.6 lb) |
